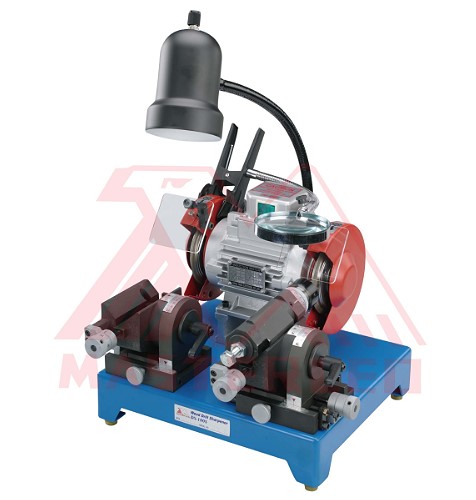

DS-100S Wood Drill Sharpener
DS-100SM Wood Drill Sharpener with Magnified Lense
  • Easy to set drill.
  • Exclusively designed chuck stand.
  • Compact Construction ; Light weight.
  • Diamond grinding wheel.
  • Suitable for skilled and unskilled operators.
Patented In:

U.S.A
Taiwan
China

DS-100S


DS-100SM
Diamond Grinding Wheel

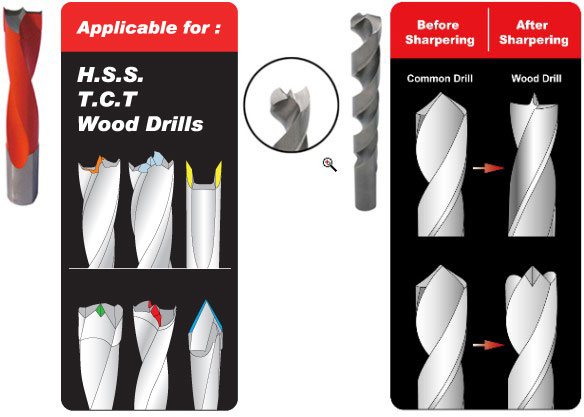

  For H.S.S. drill (GR-103, GR104 Standard)
For H.S.S. drill (GR-105 Optional, Dovetail Drill Only)
For T.C.T drill (SDC-105 Optional)
The high Quality diamond grinding wheel creates
extres fine finish.
The sharpener is supplied with 2 diamond wheels.
Magnified Lense(Optional)
Designed for clear checking during sharpening.
　

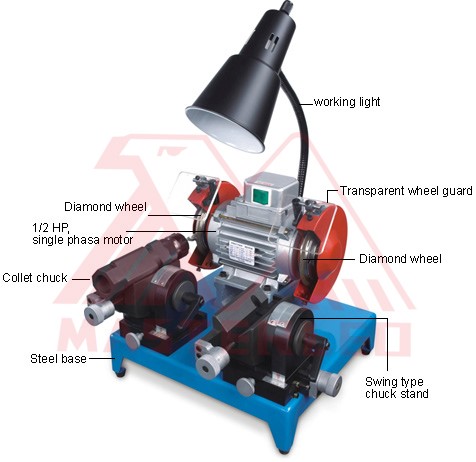

　 Swing Type Chuck Stand
The chuck stand can swing forward and backward for sharpening drill uesd for clockwise and counter-clockwise rotation.


　 Convenient Drill Length & Lips Setting
The drill length and lips setting are quickly made for added conve-nience.
　 Precision Collet Chuck
The collet chuck features high accuracy holding of drill.
Easy to replace collet.
　 ER Collets Set
Each sharpener comes standard with a set of 4 collects. (8,10,12,15mm)
OPTIONAL COLLET SIZES: 5,6,7,9,11,13,14,16mm.

High precision ER collets.
Collet concentricity meets DIN standards.

SPECIFICATIONS:

Drill diameter range 5 ~ 16 mm
Diamond wheel diameter 100mm x 2pcs
Diamond wheel speed 3450 RPM
Motor 1/2 HP, AC 110V or 220V Single phase, 3450 RPM
Motor shaft diameter 12.7 mm (1/2")
Chuck stand swing Swing forword & backward
Working light 110V or 220V, 60W
Net weight 23 kgs
Gross weight 24.5 kgs
Packing dimensions 395(L) x 395 (W) x 300(H) mm
Specifications and design characteristics are subject to change without prior notice.
